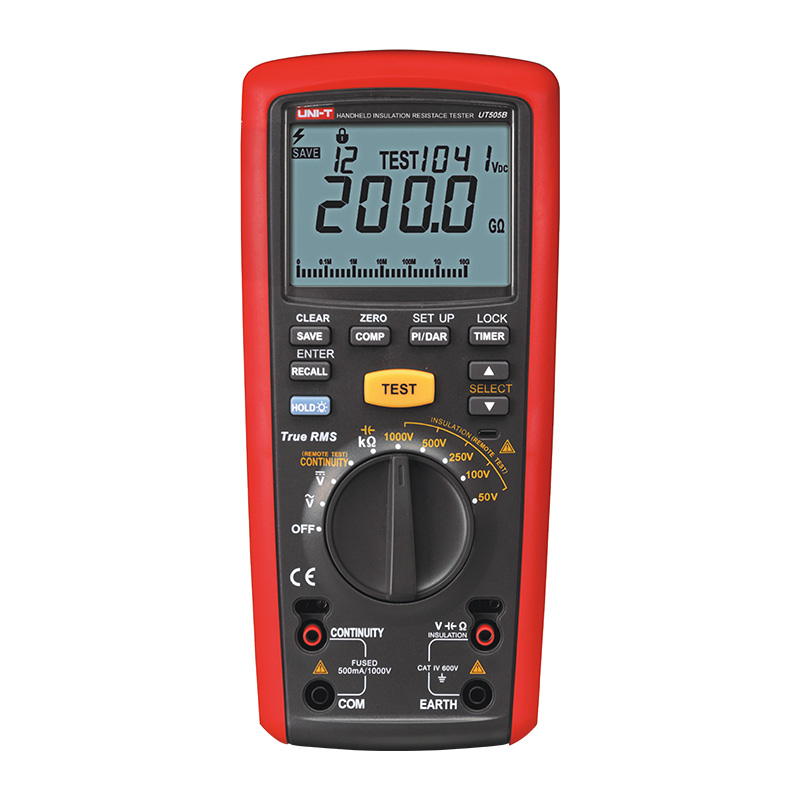

UT505B
Handheld Insulation Tester
| EN - Gerilim | -50V / 100V / 250V / 500V / 1000V |
|---|---|
| EN - Yalıtım Seviyesi | 50V: 0.00MΩ-0.99GΩ / 1.00GΩ ~ 10.0GΩ 100V: 0.00MΩ-0.99GΩ / 1.00GΩ ~ 20.0GΩ 250V: 0.00MΩ-0.99GΩ / 1.00GΩ ~ 50GΩ 500V: 0.00MΩ-0.99GΩ / 1.00GΩ ~ 100GΩ 1000V: 0.00MΩ-0.99GΩ / 1.00GΩ ~ 200GΩ |
| EN - Voltaj/Güç | 0 ~ 600V (AC) 0 ~ 600V (DC) |
| EN - AC Kaçak Akım (Hassasiyet) | 10 ~ 2000μA |
| EN - Direnç (Ω) | 0.001kΩ ~ 10MΩ |
| EN - Dc Voltaj | 0V ~ 600V |
| EN - AC Voltaj | 0V ~ 600V |
| EN - Frekans | 45 ~ 1kHz |
| EN - Kapasitans | 100qF ~ 500μF |
| Power | 6 x 1.5V AA Pil (hariç) |
| Dimensions | 22 x 10 x 4.5cm / 8.6 x 3.9 x 1.8 in mm |
| Weight | 507g / 17.9oz |
